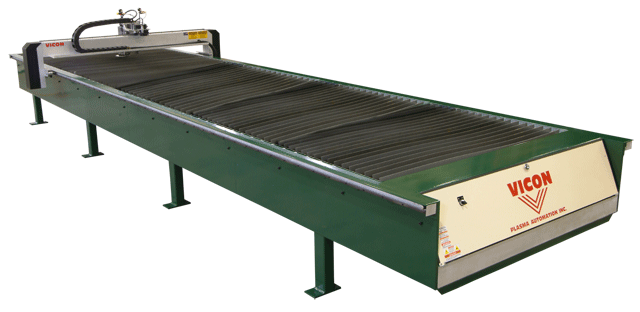

Increase your productivity by at least 40% over the Model 510 with the Vicon 520 Double Table Plasma Cutting System! This system offers all of the same features and benefits as the standard Vicon 510 system... and more!
Finished parts are unloaded at one end of the machine while you continue cutting on the other, resulting in faster job completion.
- Flexibility to cut two 10' sheets or single sheets up to 22'
- Ideally suited to fully integrate with the Vicon Plasma Coil Feed System
- Standard 5' x 10' cutting area with options for up to 6' x 20' cutting area to accommodate various shop requirements
- Rugged drives are sized for minimizing system wear and tear while providing peak performance
- All aluminum, low inertia gantry produces highly accurate parts and sharp corners and notches
- One piece down draft table including built-in automatic CNC controlled exhaust fan circuit which is only on during cutting
- State-of-the-art PC controller with color monitor for machine-side viewing of parts being processed
- On screen status control provides efficient control and easy diagnostics
- Traversing speed up to 2,000 inches per minute
- Non-lubricating gears and bearings

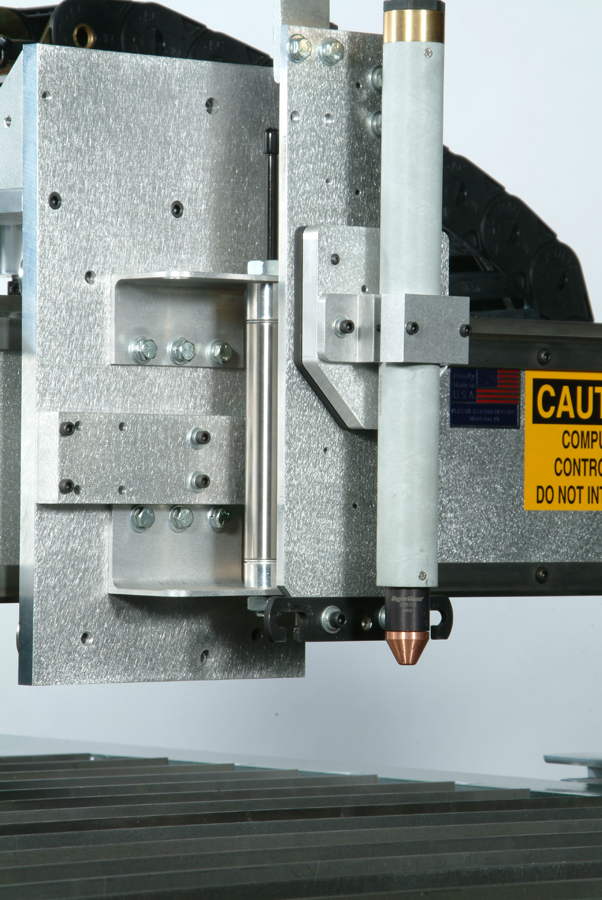

- Torch choice flexibility for cutting a variety of materials from 28 gauge up to 1/2" plate
| Specifications | ||
|---|---|---|
| Effective Cutting Area | (Standard) (Optional) |
5'x20' 6'x20' |
| Material Capacity | 28 gauge to 1/2" thick plate |
|
| Machine Length | 288" | |
| Machine Width | (Standard) (Optional) |
90" 102" |
| Table Height | 35" | |
