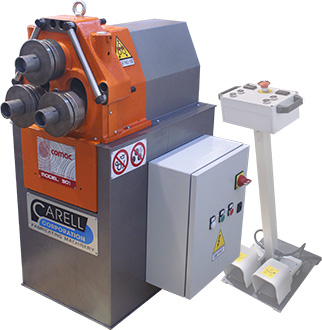

- Dual LED Digital Displays monitor bending roll positions (All CPHV Versions)
- Rugged, rigid, one piece heavy cast dome head, normalized and precision machined
- Large, high strength steel shafts, heat treated and ground
- Independent hydraulic adjustment over both lower rolls for double prebending
- All 3 rolls driven by motor and reducer group and planetary gear final drive. Lateral guides, adjustable in tilt and inclination and thrust to support material and correct twist
- Forced lubrication providing full security in the worst possible working conditions
- Machine operates both Horizontal AND Vertical orientations
Section Modulus...............................0.20 (special rolls may improve results on profile)
Rolling Speed....................................................................................................20 FPM
Power Output......................................................................................................3.8 HP
Key Width.............................................................................................................15/32”
Roll Diameters........................................................................................................5.70”
Shaft Diameters......................................................................................................1.57”
Approximate Weight........................................................................................1,200 lbs
Total Shaft Height..................................................................................................1 5/8”
Usable Shaft..........................................................................................................3 3/8”
Thread Length.......................................................................................................1 7/8”
Shaft O.D.............................................................................................................1 9/16”
Overall Roll O.D.................................................................................................5 25/32”
Flats Hard Capacity..............................................................................1-1/2” x 1/4" 012
Flats Easy Capacity....................................................................................2” x 1/2" 012
Pipe Schedule Capacit.................................................................................40: 3/4" 016
Angle Leg-in..............................................................................................1” x 3/16" 016
Options
• Tube & Pipe rolls for sizes up to 1.0” OD, one set required each tube size
• Tube & Pipe rolls for sizes up to 1.5” OD, one set required each tube size
• Tooling for angle leg-in (lateral guides with cam rollers plus tapered top roller)
