Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.

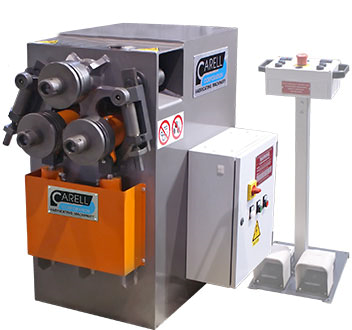

• Dual LED Digital Displays monitor bending roll positions (All CPHV Versions)
• Rugged, rigid, one piece heavy cast dome head, normalized and precision machined
• Large, high strength steel shafts, heat treated and ground
• Independent hydraulic adjustment over both lower rolls for double prebending
• All 3 rolls driven by motor and reducer group and planetary gear final drive. Lateral guides, adjustable in tilt and inclination and thrust to support material and correct twist
• Forced lubrication providing full security in the worst possible working conditions
• Machine operates both Horizontal AND Vertical orientations
Section Modulus.......................................0.10 (special rolls may improve results on profile)
Rolling Speed...........................................................................................................20 FPM
Power Output.................................................................................................................2 HP
Key Width........................................................................................................................3/8”
Roll Diameters...............................................................................................................5.31”
Shaft Diameters.............................................................................................................1.38”
Approximate Weight...................................................................................................780 lbs
Total Shaft Height.........................................................................................................1 1/2”
Usable Shaft.......................................................................................................................3"
Thread Length..............................................................................................................1 3/8”
Shaft O.D......................................................................................................................1 3/8”
Overall Roll O.D............................................................................................................5 3/8”
Flats Hard Capacity.........................................................................................2” x 5/16" 016
Flats Easy Capacity.....................................................................................2-3/8” x 5/8" 016
Pipe Schedule Capacity...................................................................................40: 1-1/4" 020
Angle Leg-in...............................................................................................1-1/2” x 3/16" 018
Options
• Rolls for tubes, pipes and specific profices
• Tooling for production of half tubes
• Overhead supports for coil production
• Compression and Tension tooling for C & I hard way
• LED digital displays for movements on lateral material guide
• NC and CNC controls with various automations levels for repetitive jobs and production of variable radius bends and parts with multiple bends
• Powered movements on lateral material guides on models 320HV/CPHV50 through 307HV/CPHV100
