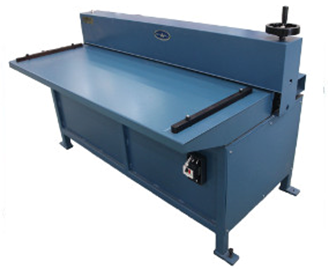

Bead pattern adjustable up to 3/16” deep, on 12” centers. Up to 5 beads, for sheets up to 60” wide, in 16 to 30 gauge material range. The depth of the bead is easily adjustable by a single station depth adjustment. There are two edge guides, one on each side, so the material can be located on the left or right side.
Capacity............................................................................16-30 gauge mild steel
Bead Centers...................................................................................................12”
Number of Beads................................................................................................5
Sheet Width Maximum.....................................................................................60”
Motor.............................................................................................................1 HP
Electricity..............................................................................110V, 1 Phase, 60HZ
Length......................................................................................................3’ 6-3/4”
Front to Back............................................................................................6’ 7-1/2”
Height.......................................................................................................2’ 8-1/2”
Approximate Shipping Weight.................................................................1,650 lbs
