Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.

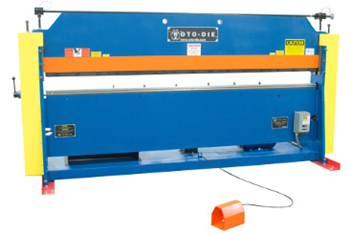

Bending Capacity.......................................................................120" x 16 gauge
.....................................................................................................72" x 10 gauge
Motor.....................................................................................................7-1/2 HP
Length of Stroke...............................................................................................3"
Stokes/Minute.........................................................................................20 to 50
Die Clearance.............................................................................................2 1/8"
Die Space...................................................................................................7 1/2"
Length.........................................................................................................12' 1"
Front to Back...................................................................................................30"
Height............................................................................................................5' 1"
Approximate Shipping Weight............................................................. 5,700 lbs
Options & Accessories
• No. 1.......Forming Die 85°
• No. 24.....Heming Die 30°
• No. 37.....7° Cross-braking groove • 85° die opening 3/8” wide •
85° die opening 7/8” wide • 30° die opening 1/2” wide
