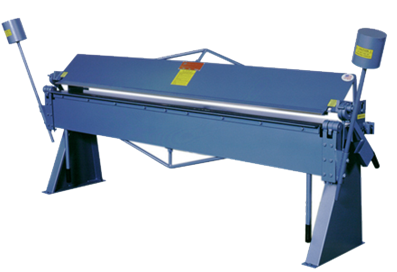

Mild Steel, Light Gauge, Floor Style
MODEL 816 & MODEL 1016
Capacity 1” Flange, Bending Bar and Angle in Place...................16 ga
Capacity 1” Flange, Bending Angle Removed..............................20 ga
Capacity 1” Flange, Bending Bar and Angle Removed................24 ga
Minimum Reverse Bend (Bar and Angle Removed).......................1/4"
MODEL 816
Bending Length...............................................................................97"
Maximum Lift of Beam.................................................................1 5/8"
Front to Rear Adjustment.............................................................1 1/8"
Shipping Weight......................................................................1,640 lbs
MODEL 1016
Bending Length...............................................................................121"
Maximum Lift of Beam..................................................................2 1/4"
Front to Rear Adjustment..............................................................1 3/8"
Shipping Weight.......................................................................2,660 lbs
MODEL 1018 & MODEL 1218
Capacity 1” Flange, Bending Bar and Angle in Place....................18 ga
Capacity 1” Flange, Bending Angle Removed...............................22 ga
Capacity 1” Flange, Bending Bar and Angle Removed.................26 ga
Minimum Reverse Bend (Bar and Angle Removed).........................1/4"
Maximum Lift of Beam...................................................................2 1/4"
MODEL 1018
Bending Length..............................................................................121"
Front to Rear Adjustment..............................................................1 1/8"
Shipping Weight......................................................................2,200 lbs
MODEL 1218
Bending Length.............................................................................145"
Front to Rear Adjustment.............................................................1 3/8"
Shipping Weight.....................................................................3,100 lbs
