Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.

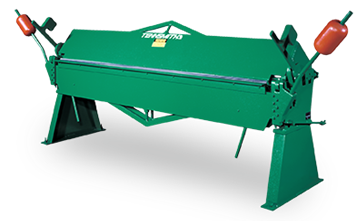

Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thickness or radii.
Other adjustment features
• Leveling screws and lock nuts on pedestals
• Jack screws and tensioner bolts on the apron
• Truss rods on the apron, base and upper beam
• Fully adjustable counter balances to facilitate the bending process
• Replaceable nose bar and apron inserts
Front to Rear Beam Adjustment....................... 1/2”
Minimum Reverse Bend................................... 1/4”
Minimum Flange in Capacity Material................. 1”
Model HB48-12
Maximum Capacity, Mild Steel..................... 12 ga
Bending Length................................................ 49”
Maximum Lift of Beam................................. 1 7/8”
Dimensions.................................... 72” x 36” x 53”
Shipping Weight..................................... 1,100 lbs
Model HB97-12
Maximum Capacity, Mild Steel..................... 12 ga
Bending Length.................................................97”
Maximum Lift of Beam..................................2 1/4”
Dimensions............................ 145” x 54” x 63 1/2”
Shipping Weight..................................... 2,800 lbs
Model HB97-18
Maximum Capacity, Mild Steel..................... 18 ga
Bending Length.................................................97”
Maximum Lift of Beam..................................1 7/8”
Dimensions........................... 138” x 48” x 59 1/2”
Shipping Weight..................................... 1,385 lbs
Model HB121-18
Maximum Capacity, Mild Steel..................... 18 ga
Bending Length............................................... 121”
Maximum Lift of Beam.................................. 1 7/8”
Dimensions................................... 159” x 52” x 60”
Shipping Weight...................................... 2,300 lbs
Model HB145-18
Maximum Capacity, Mild Steel..................... 18 ga
Bending Length................................................145”
Maximum Lift of Beam.................................. 2 1/4”
Dimensions............................. 185” x 53” x 59 1/2”
Shipping Weight...................................... 3,400 lbs
Model HB121-14
Maximum Capacity, Mild Steel..................... 14 ga
Bending Length................................................121”
Maximum Lift of Beam....................................2 1/4”
Dimensions.............................. 162” x 54” x 63 1/2”
Shipping Weight....................................... 3,250 lbs
Model HB73-16
Maximum Capacity, Mild Steel..................... 16 ga
Bending Length.................................................73”
Maximum Lift of Beam...................................1 7/8”
Dimensions............................. 114” x 48” x 59 1/2”
Shipping Weight...................................... 1,200 lbs
Model HB97-16
Maximum Capacity, Mild Steel..................... 16 ga
Bending Length..................................................97”
Maximum Lift of Beam...................................1 7/8”
Dimensions................................... 140” x 52” x 60”
Shipping Weight....................................... 1,675 lbs
Model HB121-16
Maximum Capacity, Mild Steel..................... 16 ga
Bending Length................................................121”
Maximum Lift of Beam.................................. 2 1/4”
Dimensions............................. 161” x 53” x 59 1/2”
Shipping Weight....................................... 2,875 lbs
