Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.

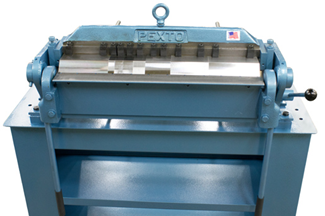

Bending Length......................................................................24”
Capacity Mild Steel, 1” Flange, Bar & Angle in Place........16 ga
Capacity Mild Steel, 1” Flange, Bar & Angle Removed.....20 ga
Minimum Reverse Bend........................................................1/4”
Maximum Lift of Beam.............................................................1”
Finger Widths......................3/4", 1”, 1 1/2”. 1 3/4", 3”, 4 1/2”, 6”
Maximum Depth of Box...........................................................3”
Back Gauge Adjustment.....................................................0-24”
Dimensions..........................................................34” x 28” x 11”
Shipping Weight..............................................................270lbs
Bench Stand Shipping Weight........................................160lbs
Options & Accessories
• Heavy Duty Welded Floor Mount
• Radius Fingers: 1/16”, 1/8”, 3/16”, 1/4", 5/16”, 3/8”, 7/16”, 1/2", 3/4", 1”
