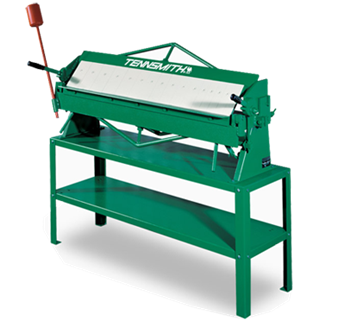

Features apron stop rod for repeat bends, extension handles, counterweight, removable apron angle and apron insert permitting 1/4” reverse bends in lighter materials. The upper leaf and nose bar have a wide range of adjustment for radius bending.
Bending Length.......................................................................48 1/4"
U48-22 – 4’, 22 Gauge Box and Pan Bending Brake
Maximum Capacity, Mild Steel.................................................22 ga
Maximum Depth of Box...................................................................3”
Maximum Lift of Beam..................................................................7/8”
Front to Rear Beam Adjustment...................................................1/4”
Minimum Reverse Bend.............................................................5/16”
Minimum Flange in Capacity Material..........................................3/8”
Finger Widths........................................................................2”, 3”, 4”
Shipping Weight......................................................................280 lbs
S48-22 – 4’, 22 Gauge Straight Bending Brake
Maximum Capacity, Mild Steel.................................................22 ga
Maximum Depth of Box...................................................................3”
Maximum Lift of Beam..................................................................7/8”
Front to Rear Beam Adjustment...................................................1/4”
Minimum Reverse Bend.............................................................5/16”
Minimum Flange in Capacity Material..........................................3/8”
Shipping Weight......................................................................220 lbs
HBS48-16 – 4’, 16 Gauge Straight Bending Brake
Maximum Capacity, Mild Steel.................................................16 ga
Maximum Lift of Beam..............................................................1 1/4”
Front to Rear Beam Adjustment..................................................5/8”
Minimum Reverse Bend..............................................................1/4”
Minimum Flange in Capacity Material............................................1”
Shipping Weight.....................................................................460 lbs
Options & Accessories
• Stand
