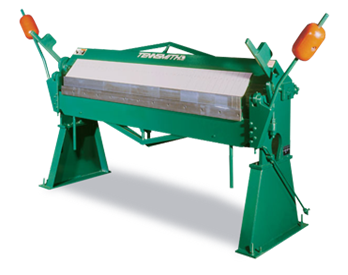

Box and Pan Brake with Segment Lower Base and Folding Beam
Maximum Lift of Beam............................................................1 1/2”
Front to Rear Beam Adjustment...............................................1/2”
Maximum Depth of Box...............................................................4”
Minimum Reverse Bend...........................................................5/8”
Minimum Flange in Capacity Material.........................................1”
Top Segment Tooling Widths............................................2”, 3”, 4”
Lower Segment Tooling Widths...........1”, 1 ½ “, 4”, 6”, 8”, 12”, 20”
Bending Beam Tooling Segments.......1”, 1 ½ “, 4”, 6”, 8”, 12”, 20”
Maximum Transverse Bend (through tooling centers)................2”
Maximum Transverse Bend (at either end of machine)..............3”
HBT48-12 - 4’ Floor Model
Maximum Capacity, Mild Steel...............................................12 ga
Capacity w/Bending Support Angle Removed, Mild Steel......16 ga
Bending Length.....................................................................48 1/4"
Dimensions, Counterweights in Place......................72” x 36” x 53”
Shipping Weight...............................................................1,750 lbs
HBT72-16 - 6’ Floor
Maximum Capacity, Mild Steel...............................................16 ga
Capacity w/Bending Support Angle Removed, Mild Steel......20 ga
Bending Length..........................................................................72”
Dimensions, Counterweights in Place................89 1/2" x 36” x 53”
Shipping Weight................................................................2,200 lbs
