New Equipment
Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.
Front to Rear Beam Adjustment.................................................1/2”
Maximum Depth of Box.................................................................6”
Minimum Reverse Bend.............................................................1/4”
Minimum Flange in Capacity Material...........................................1”
Finger Widths......................................................................3”, 4”, 5”

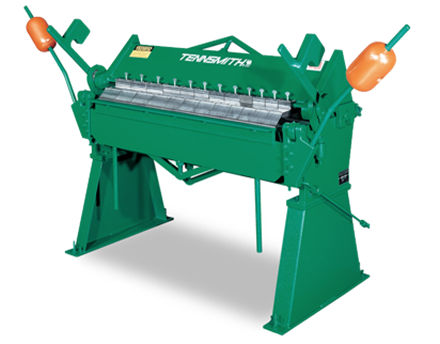

F6-48-12: 4’ Heavy-Duty Box and Pan Bending Brake
Maximum Capacity, Mild Steel................................................12 ga
Capacity, Stainless Steel.........................................................16 ga
Bending Length...........................................................................48"
Maximum Lift of Beam.............................................................1 1/2”
Dimensions, Counterweights in Place.......................72" x 49” x 56”
Shipping Weight.................................................................1,725lbs
F6-72-12: 6’ Heavy-Duty Box and Pan Bending Brake
Maximum Capacity, Mild Steel...............................................12 ga
Capacity, Stainless Steel........................................................16 ga
Bending Length...........................................................................72"
Maximum Lift of Beam.............................................................2 1/4”
Dimensions, Counterweights in Place.....................110" x 53” x 60”
Shipping Weight................................................................2,825 lbs
F6-96-12: 8’ Heavy-Duty Box and Pan Bending Brake
Maximum Capacity, Mild Steel...............................................12 ga
Capacity, Stainless Steel.......................................................16 ga
Bending Length..........................................................................96"
Maximum Lift of Beam............................................................2 1/4”
Dimensions, Counterweights in Place....................137" x 53” x 60”
Shipping Weight...............................................................3,250 lbs
F6-120-14: 10’ Heavy-Duty Box and Pan Bending Brake
Maximum Capacity, Mild Steel..............................................14 ga
Capacity, Stainless Steel.......................................................18 ga
Bending Length.......................................................................120"
Maximum Lift of Beam...........................................................2 1/4”
Dimensions, Counterweights in Place...................161" x 53” x 60”
Shipping Weight................................................................3,840 lbs
Options & Accessories
• Extension Fingers (pair)
• Open End Fingers (pair)
• Radius Fingers (Please Specify Radii) (per inch)
