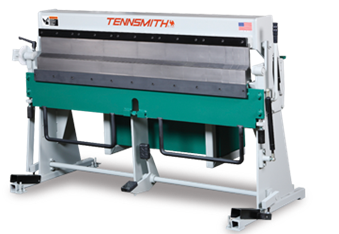

5’ Foot Floor Model Box and Pan Brake with Segment Lower Base and Folding Beam
Maximum Capacity, Mild Steel..............................................16 ga
Bending Length....................................................................60 1/4"
Maximum Lift of Beam.................................................................4”
Bending Beam Adjustment..........................................................1”
Maximum Depth of Box.........................................................4 1/8”
Minimum Reverse Bend...........................................................5/8”
Segmented Tooling Width............................10, 12, 8, 6, 4, 1.5, 1
Maximum Transverse Blend (through tooling centers)..........2 1/4”
Dimensions....................................................72” x 45 1/2" x 31 ½”
Shipping Weight...............................................................1,150 lbs
