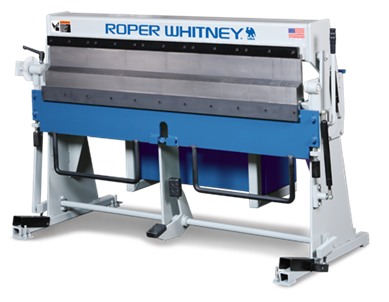

Allows for the removal and repositioning of both the upper and lower segments for forming complex parts. Incorporates gas spring cylinders in lieu of traditional counterweights to assist in the bending process and the raising and lowering of the upper beam.
Maximum Bending Capacity, Mild Steel..................................16 ga
Maximum Bending Length.....................................................60 1/4"
Maximum Lift of Beam...................................................................4”
Bending Beam Adjustment............................................................1”
Minimum Reverse Bend..............................................................5/8”
Segmented Tooling Width...............................20, 12, 8, 6, 4, 1.5, 1
Maximum Box Depth................................................................4 1/8”
Maximum Transverse Bend (through tooling centers).............2 1/4"
Dimensions....................................................72" x 45 1/2” x 31 1/2"
Shipping Weight.................................................................1,150 lbs
