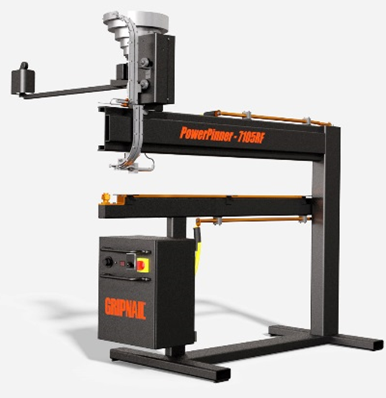

The new PowerPinner Glider 7105 Rapid Fire has a special program that allows the operator to continuously fasten weld pins while depressing the foot pedal. This option works when the arm is locked in the vertical position and the machine is foot pedal activated. The RF will keep welding pins until the operator removes his foot from the pedal. This maximizes speed for the fastest possible pinning operation. Flip a switch and the machine returns to a manual mode for larger pieces of duct work.
The PowerPinner Glider 7105 Rapid Fire features simple, reliable electronic controls and a high output transformer that will fasten 1/2" to 2" pins to 16-26 gauge sheet metal.
- Moving Head
- Flange Cutouts – Permits continuous lining of flat or L section flanged duct
- Easy to Operate – Fill the feeder bowl Gripnails, set the air pressure. Drive up to 1,000 fasteners before refilling
- Standard 5 Foot Throat
- Front Mounted Component Cabinet
- Visual Load Cycle
- Proprietary Drive Cylinders
- NEMA 12-Rated Electrical Cabinet
- Lightweight Foot Pedal
- Uniform Fastening
Input Voltage................190-240 VAC 60 Hz, 1 Phase, 30 Amp.
Air Requirement.........................................2-3 C.F.M., 80 P.S.I.
Working Depth.......................................................................60”
Total Depth............................................................................71”
Weight (crated)...............................................................800 lbs
Anvil Height...........................................................................36”
Total Width............................................................................32”
