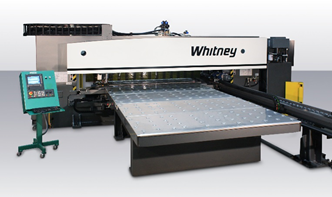

Material Thickness – Maximum...................................................................................................2.5”
Maximum Punch Diameter........................................................................................................5.00”
Punching Capacity A36 (60 ksi/410 MPa Shear Strength)
.250...............................................................................................................................5.00” (shear)
.375.............................................................................................................................2.344” (shear)
.500.............................................................................................................................1.406” (shear)
.625.............................................................................................................................1.234” (shear)
.750”.................................................................................................................................0.766 (flat)
Punching Hit Rate...............................................................................................................115 HPM
10 gauge material punched on 1” centers
X-axis Processing Area............................................................................................................190.6”
Y-axis Processing Area............................................................................................................100.0”
Nominal Blank Size – Without Auxiliary Tables................................................................100” x 160”
Can punch and plasma cut a full 100” x 160” sheet or material without repositioning
Extended Blank Size – With Auxiliary Tools and Repositioning.......................................100” x 320”
Longer plates may be accommodated in certain applications using multiple automated repositioning cycles
Positioning Speed Per Axis.............................................................................................1,200 in/min
Positioning Accuracy...............................................................................................................±0.005”
Minimum Programmed Increment.............................................................................................0.001”
Maximum Material Weight.....................................................................................................3,000lbs
Shipping Weight – Approximately without options...............................................................54,000lbs
Foundation Requirement.....8” reinforced concrete foundation is required beneath the press frame
Electrical Requirement....................................................................................................... 460/3/60
Floor Space – Approximate
Front – Back...............................................................................................................................384”
Left – Right.................................................................................................................................404”
Height – Machine.......................................................................................................................106”
Height (with dust collector)........................................................................................................148”
