New Equipment
Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.
Capacity-Mild Steel .................................................................10 Gauge
Steel Rated 80,000 Tensile/44,000 Yield
Capacity-Stainless Steel..........................................................14 Gauge
Shear Rated Materials at 90,000/55,000
Back Gauge Range............................................................................30"
Strokes Per Minute.............................................................................45
Back Gauge Motor (if equipped)...................................1/4 HP 230/3/60

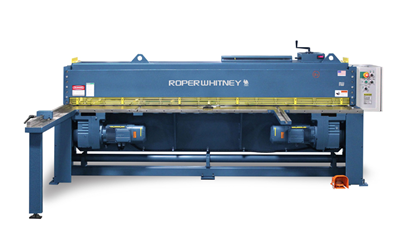

PX410/PX410-R -- PX610/PX610-R
Max Cutting Length...............................................................52.25", 73"
Number of Hold-down Feet................................................................14
Drive Motor.....................................................................10HP 230/3/60
Overall Dimensions, Less Gauges.........72” x 39” x 60" - 92” x 39” x 60"
Floor Space, Gauges in Position............72” x 78” x 60" - 92” x 78” x 60"
Shipping Weight......................................................3,700 lbs - 4,700 lbs
Shipping Weight (PX410R - PX610R).....................4,000 lbs - 5,000 lbs
PX810/PX810-R -- PX1010/PX1010-R
Max Cutting Length..................................................................97", 121"
Number of Hold-down Feet..........................................................14, 16
Drive Motor...................................................................7.5 HP 230/3/60
Overall Dimensions, Less Gauges............116”x39”x60" - 145”x39”x60"
Floor Space, Gauges in Position...............116”x78"x60" - 145”x78”x60"
Shipping Weight.....................................................6,900 lbs - 9,200 lbs
Shipping Weight (PX410R - PX610R)....................7,200 lbs - 9,500 lbs
Available Options & Accessories – All Models
• 5’ Squaring Arm • 10’ Squaring Arm
• Squaring Arm, • Additional Stops
• Protractor Attachment • T-Slotted Front Support Arms (each)
• Work Light PX Series
R = Rear Return w/Pro Package
Pro Package: 5’ Squaring Arm • 2 Front Arm Supports • Squaring Arm,
• "R" Rear Drop Air Operated Sheet Support System
• 2R Front Operated manual • Back Gauge w/Digital Readout
