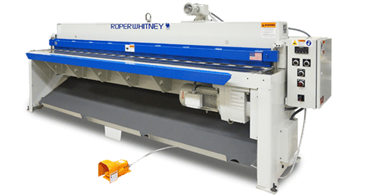

10M14
Capacity-Mild Steel ...............................................................14 Gauge
Steel Rated 80,000 Tensile/44,000 Yield
Capacity-Stainless Steel........................................................18 Gauge
Shear Rated Materials at 90,000/55,000
Overall Dimensions, Less Gauges...................................141"x27”x52"
Floor Space, Gauges in Position.....................................141”x 64”x52"
Shipping Weight......................................................................5,500lbs
10M16
Capacity-Mild Steel ...............................................................16 Gauge
Steel Rated 80,000 Tensile/44,000 Yield
Capacity-Stainless Steel........................................................20 Gauge
Shear Rated Materials at 90,000/55,000
Overall Dimensions, Less Gauges...................................141"x27”x52"
Floor Space, Gauges in Position.....................................141”x 64”x52"
Shipping Weight......................................................................4,350 lbs
Back Gauge Range..........................................................................30"
Strokes Per Minute...........................................................................35
Max Cutting Length.......................................................................121"
Hold-down System...........Solid Bar with Non-Marring Urethane Insert
Drive Motor.....................................................................5HP 230/3/60
Back Gauge Motor (if equipped).................................1/4 HP 230/3/60
Available Options & Accessories
• Work Light • Side Extension Squaring Arm 4’ to 8’ • Stroke Counter
• Side Extension Squaring Arm with Fixed Stop – 4’ • HC/HC Blade
• Side Extension Squaring Arm 8’ to 12’ • Fixed Stop Assembly
10M14-R (Rear Return w/Pro Package)
10M14-F (Front Return w/Pro Package)
10M14-FC (Moveable Front Return Material Cart & Pro Pkg)
10M16-R (Rear Return w/Pro Package)
10M16-F (Front Return w/Pro Package)
Pro Package: 4’ Squaring Arm • 2 Front Arm Supports •
• Air Operated Sheet Support System
