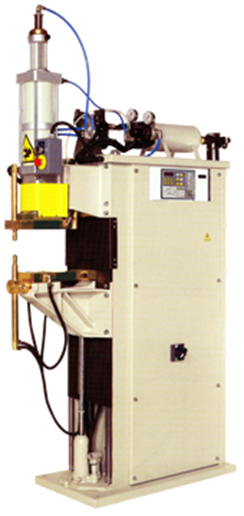

MODELS 6101, 6102, 6103
- DC Three-Phase welding machines offer the following additional features: High Power Factor, Reduced load on Plant Primary Electrical Service, Balanced effect of magnetic materials between Arms, Reduced installation costs.
- Welding Control unit TE 183, with direct current reading.
- Six-phase Silicon Rectifier with device to check the diodes proper clamping.
- Protection of the diodes against overload, over voltages and temperature.
- Synchronous SCR Contactor insulated from the cooling water circuit with protection thermostat.
- Two-Stage Electric Footswitch.
- Pre-connection for additional Double-Stage Footswitch.
- Emergency Stop push button, to stop the machine immediately.
- Protection with automatic circuit breaker.
- Water-cooled Transformer, Plates, Electrode Holders and Electrodes.
- Adjustable Double-Stroke Cylinder with key control, has Chrome-plated Stem for heavy duty works and long life. Adjustable, anti-rotation device.
- Complex Pneumatic cycle, with electrode low force squeeze.
- Built-in compressed Air filter unit and tank. (Compressed air disconnection device)
- Electrodes descend without pressure for both maintenance and set-up.
- Two-Hand Safety Control with timer and removable key selector
- Flow Switch, which stops the machine if the cooling water does not flow.
|
SPECIFICTATIONS |
6101 |
6102 |
6103 |
|
|
Spot/Projection |
·/· |
·/· |
·/- |
|
|
Nominal power at 50% |
KVA |
100 |
100 |
100 |
|
Maximum welding power |
KVA |
415 |
415 |
380 |
|
Short circuit current |
kA |
60 |
60 |
55 |
|
Maximum welding current on aluminum |
kA |
55 |
55 |
50 |
|
Maximum welding current on steel |
kA |
48 |
48 |
44 |
|
Thermal current 100% |
A |
11,000 |
11,000 |
11,000 |
|
No load secondary voltages |
V |
6.3 5.5 |
6.3 5.5 |
6.3 5.5 |
|
Supply voltage 50 Hz* |
V |
400 |
400 |
400 |
|
Cables section L=30 m |
mm2 |
50 |
50 |
50 |
|
Delayed fuses |
A |
100 |
100 |
100 |
|
Minimum gap |
mm |
175 |
175 |
175 |
|
Maximum gap |
mm |
475 |
475 |
475 |
|
Depth L |
mm |
385 |
535 |
800 |
|
Depth D |
mm |
260 |
410 |
- |
|
Max. electrode force (6 bar) – standard |
daN |
736 |
736 |
736 |
|
Max. electrode force (6 bar) with option 6135 |
daN |
1242 |
1242 |
- |
|
Maximum stroke |
mm |
100 |
100 |
100 |
|
Double stroke – standard |
mm |
0-80 |
0-80 |
0-80 |
|
Compressed air supply |
bar |
6.5 |
6.5 |
6.5 |
|
Air for 1000 spots (6 bar) Standard version – stroke 20 mm Standard version – max. stroke With option 6135 – stroke 20 mm With option 6135 – max. stroke |
Nm3 Nm3 Nm3 |
2.9 9.2 6 15.5 |
2.9 9.2 6 15.5 |
2.9 9.2 - - |
|
Air supply hose |
mm |
16 |
16 |
16 |
|
Water cooling |
l/mm |
12 |
12 |
12 |
|
Aerial noise produced |
db(A |
73 |
73 |
76 |
|
Measure conditions Working stroke Welding time Welding current Working rating in welds/min |
mm cycles kA |
50 14 45 6 |
50 14 45 6 |
20 8 41 15 |
