Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.

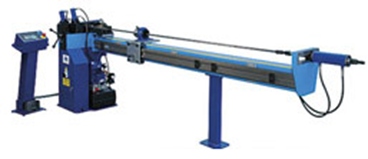

• Digitally Stores 50 programs with up to 9 bends each
• Hydraulic Clamps, Programmable
• Hydraulic Mandrel Extraction, Programmable
Maximum Pipe Size...................................................1 1/2"
Maximum Tube O.D......................................2.375” x .120"
Maximum Bend Angle..................................................180°
Maximum Bend Radius.................................................9.5"
Speed..........................................................................Dual
Installed Power..........................................................3.5HP
Approximate Weight................................................890 lbs
Options
• Mandrel Bending Tooling & Accessories
• Mandrel Bed Lengths 5’, 8’, 11’, 15’, & 18’
