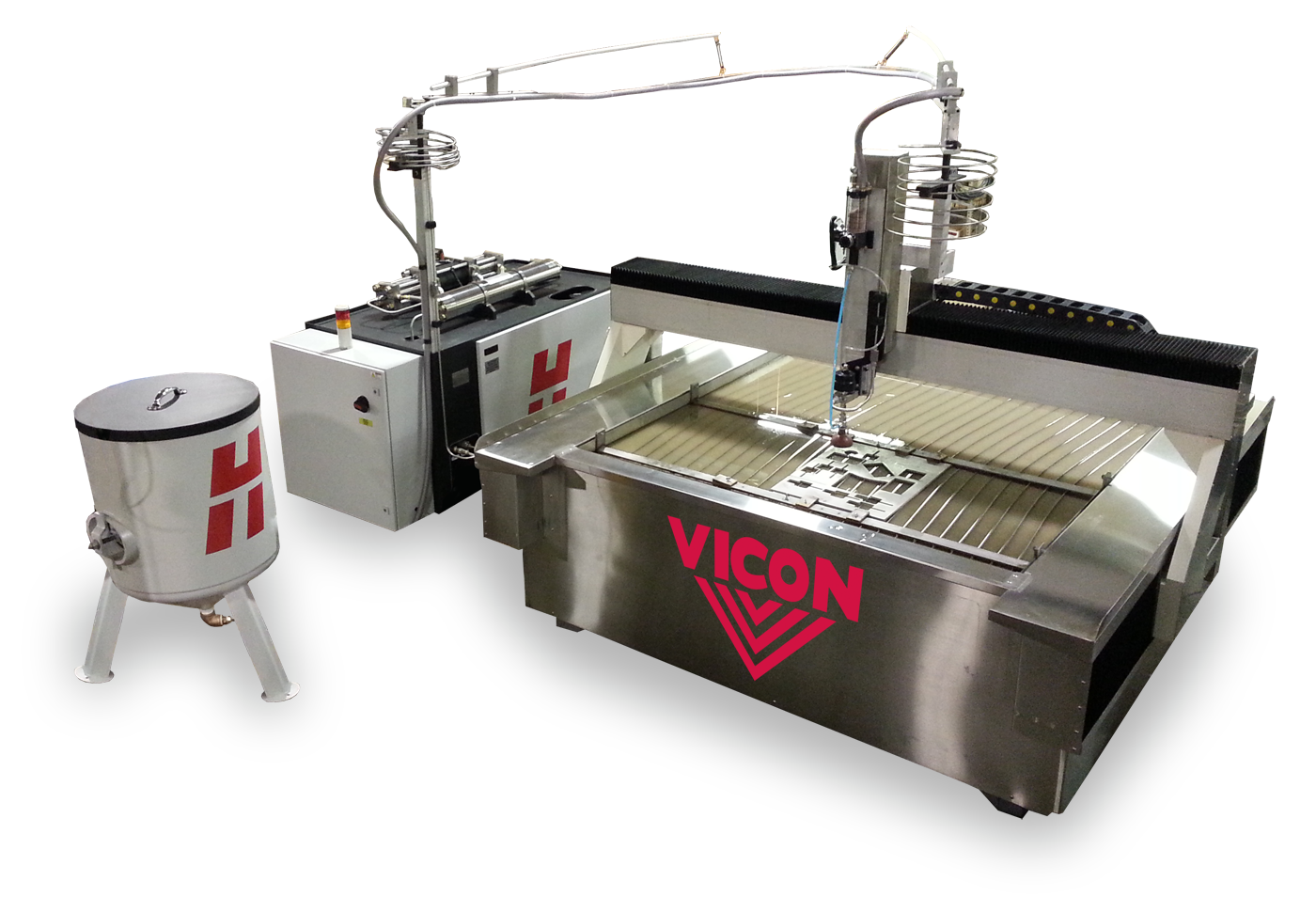

Vicon Vicon Abrasive Waterjet

This newly developed machine is equipped with Hypertherm HyPrecision Intensifier capable of cutting materials up to 4” with extremely accurate tolerances. This system is based on newly developed gantry and motion system, along with the recently enhanced electronics and Vicon Control software. The system is available in 5' x 5' or 5' x 10' models.

Features & Benefits
  • Precision Ball Screw Drives
  • Yaskawa Servo Motors and Drives
  • Exclusive Vicon PC Control System and Auto Nesting Software
  • 410 Stainless Steel Tank Frame
  • 304 Stainless Steel Cosmetic Covers
  • Rigid Extruded Aluminum Gantry
  • Hypertherm Pump Technology & Abrasive Delivery System
Accuracy ± .005"
Cut Speed 400 IPM
Traverse Speed 400 IPM
Repeatability .002"
Z Vertical Travel Approx. 8"

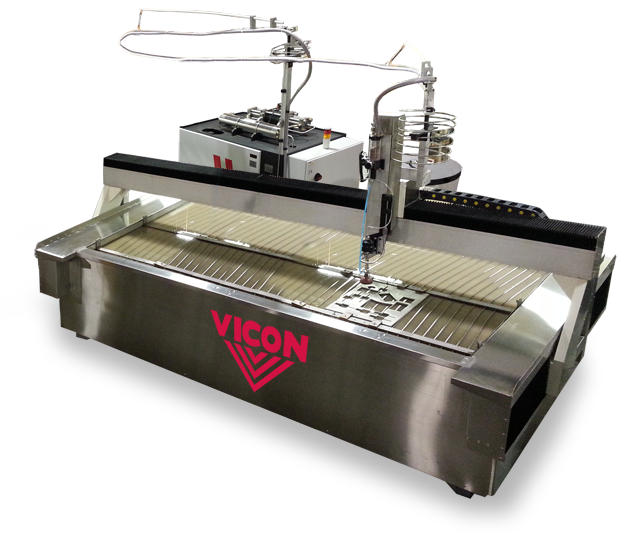

Table Sizes 5' x 5'
5' x 10'

Optional Features
  • Recirculating Chiller Unit for the Pump
  • Four Compartment Stainless Steel Strainer Tank for Excess Water Drainage
