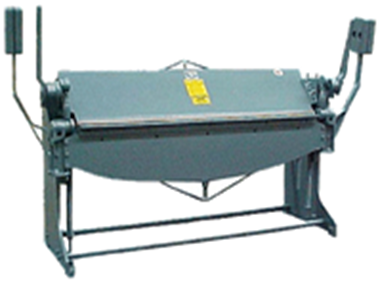

Roper Whitney Combination Bending Brake

12 gauge Mild Steel Capacity

Straight bending, box and pan work, inside bending, radius bending and other intricate forming operations are possible with use of special fingers.

Available work lengths............................................4’, 6’, 8’, & 10’
Maximum Jaw Opening........................................................1 3/4"
Max Jaw Opening may be increased to 4" to accept box fingers
Minimum Reverse Bend..........................................................1/4"
Minimum Flange Bend...............................................................1"

MODEL 412
Maximum Bending Length...........................................49"
Dimensions................................................85” x 43" x 60”
Shipping Weight................................................1,620 lbs

MODEL 612
Maximum Bending Length...........................................73"
Dimensions..............................................109” x 43" x 60”
Shipping Weight............................................... 2,280 lbs

MODEL 812
Maximum Bending Length...........................................97”
Dimensions..............................................143" x 46" x 67"
Shipping Weight.................................................3,580 lbs

MODEL 1012
Maximum Bending Length..........................................121"
Dimensions...............................................167" x 46” x 67"
Shipping Weight................................................ 5,040 lbs
