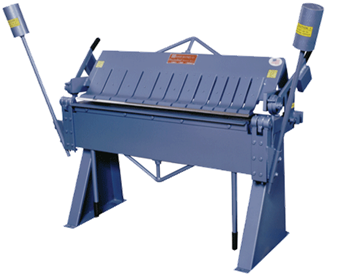

Connecticut Box and Pan Brakes U412-6, 4616-6

U Finger Light Gauge Bending Brakes

MODEL U412-6 & U616-6
Minimum Reverse Bend (Bar & Angle Removed).........................1/4”
Maximum Lift of Beam................................................................1 5/8”
Finger Widths.........................................................................3”, 4”, 5”
Maximum Depth of Box....................................................................6”
Front to Rear Adjustment............................................................1 1/8”

MODEL U412-6
Bending Length.......................................................................48”
Capacity Mild Steel, 1” Flange, Bar & Angle in Place.........12 ga
Capacity Mild Steel, 1” Flange, Angle Removed................18 ga
Capacity Mild Steel, 1” Flange, Bar & Angle Removed......22 ga
Shipping Weight.............................................................1,600lbs

MODEL U616-6
Bending Brake Bending Length.............................................72”
Capacity Mild Steel, 1” Flange, Bar & Angle in Place.........16 ga
Capacity Mild Steel, 1” Flange, Angle Removed................20 ga
Capacity Mild Steel, 1” Flange, Bar & Angle Removed......24 ga
Shipping Weight.............................................................1,800lbs

Options & Accessories
• Radius Fingers
