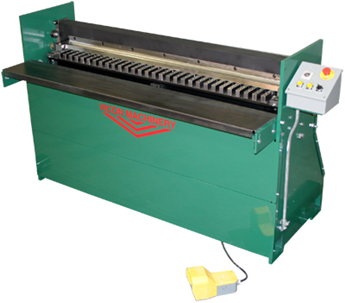

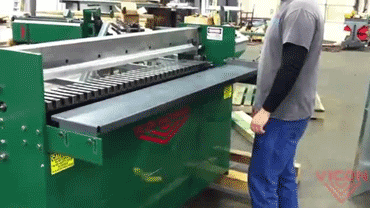

Vicon Machinery Duct Brake

The Vicon Duct Brake forms TDX flanged duct with quick and easy positioning and 90° bending of End Flange, L-Duct Sections, Full Wrapper Duct, and Fittings.

Features & Benefits
  • 16 Gauge x 5’ Bending Capacity
  • Maximum 2" Liner Capacity when forming lined duct
  • 6" x 6" minimum full wrapped, unlined duct size
  • Pneumatic forming cycle, single foot switch operation for TDX or S&D
  • Manual or push button controls
  • Timer to control bend sequences
  • Precision heavy duty construction
  • Adjustable height table for TDX, S&D, and Raw
  • Slip & Drive capability
  • Front support apron
  • Retractable notch positioning guide for self-aligning bend location and easier part removal
  • 80 PSI / 5 CFM
  • 115 Volt / Single Phase

Options
  • 36" Manual Backgauge
