New Equipment
Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.

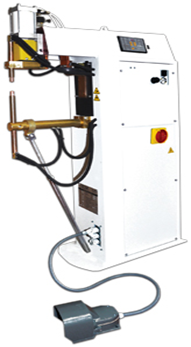

- Rugged Steel Frame
- Built-in Microprocessor Control TE90 with Dual Current, Dual Weld Time, Upslope and Pulsation
- Digital Phase Shift Weld Current Adjustment from 01% to 99% for precision welding
- Maintenance Free Solid State SCR Contractor
- Soft Touch Control Pad with LED function and value indicators
- Speed Control adjustments
- Two Stage Electric Footswitch with the option to add a second footswitch for Dual Current and Dual Weld Time
- Combination Air Filter and Pressure Regulator with Gauge
KVA Rating @ 50% Duty Cycle....................................................................50KVA
Maximum Short Circuit (A)........................................................................21,400 A
Transformer.................................................................Water-cooled, Dual Voltage
Secondary Voltage (V) No Load......................................................................6.3V
Force Ratings – Maximum Throat................................................................472lbs
Force Ratings – Maximum Throat................................................................955lbs
Electrical Connections – Dual Voltage...........................................220V-440V/160
Recommended Cable (for not more than 5% voltage drop in 100 ft.)......................4/0 AWG
Fuse Rating.....................................................................................................150A
