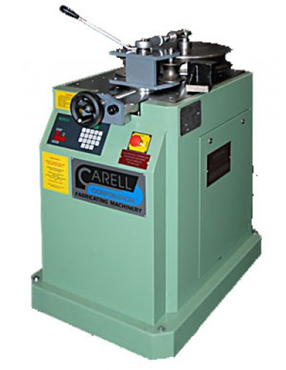

ETM60 & ETM76-HD 2-1/2"
- Solid Steel Frame - Lower, wider, heavier, built from solid steel plate material. No cast or aluminum frame parts
- Solid Steel Tooling – Tmanufactured from solid steel billet for durability, no castings
- Programmable – Dependable and easy to use digital microprocessor control allow storing of up to 40 different programs, each with a 5 bend sequence
- Manual/Automatic Function – allows automatic bend and return with one command or dual key stroke in manual
- Quick Cam Release – Made from solid steel, allows release of counter bending die pressure for quick return to zero of the former and rapid release of the bent part from the forming die
- Bends Without Mandrels – Unique tooling and counter bending system permits bending without the need for internal mandrels
- Simplified Tooling – Optional tooling uses smooth center bore for easy change-over sizes
- Rapid Cycle – Rapid Cycle Rate and heavy duty construction creates a machine suited for mid-level production bending applications as well as general shop use
Maximum Bend Angle...........................................................................180° + spring back
Maximum Capacity........3” OD MS Tube x 0.1046”, 2” Scd. 40 Pipe, 2-1/2” Scd. 10 Pipe
Drive Train............................................................................................Electromechanical
Speed Reduction................................................................Oil bath with solid stock gears
Voltage Required..........................................................220/230 – 3 Phase 60HZ or 50HZ
EMT60
Speed..............................................................................4 seconds on 90° bend, no load
Installed Power.......................................................................2.75 HP TEFC Brake Motor
Machine Weight.....................................................Approximately 418 lbs (without tooling)
Voltage Required..........................................................220/230 – 3 Phase 60HZ or 50HZ
Dimensions...................................................25” W x 25” L x 39” Tall (36” working Height)
Capacities:
Round Steel Pipe..........................................................................1-1/2” Schedule 40 Pipe
Round Steel Pipe.........................................................2-1/2” Schedule using arbor tie bar
Round Steel Tube.................................................................................2-1/4” x 0.135” wall
Square Steel Tube.....................................................................................................1-1/4"
Solid Round Bar.........................................................................................................1-1/4"
EMT76-HD 2-1/2"
Speed.........................................Advance to set point in 6 seconds on 90° bend, no load
Installed Power.........................................................................5.5 HP TEFC Brake Motor
Machine Weight.....................................................Approximately 572lbs (without tooling)
Voltage Required..........................................................220/230 – 3 Phase 60HZ or 50HZ
Dimensions..........................................................34” x 25” x 39” Tall (36” working Height)
Capacities:
Round Steel Pipe................................................................................2” Schedule 40 Pipe
Round Steel Pipe..........................................................................2-1/2” Schedule 10 Pipe
Round Steel Tube..................................................................................2-3/4” x 0.16” wall
Square Steel Tube........................................................................................2" x 2" x 3/16”
Solid Round Bar..................................................................................................1-3/4” OD
