New Equipment
Central States Machinery is fully committed to ensuring your machinery needs are met. Our product line encompasses Fabrication, HVAC, Precision Machinery, and Metal Processing Systems. From start to finish, customer service is our TOP PRIORITY. Our knowledgeable sales force guides you through the sales process. Experienced and professional technicians train you and your staff on site. All are available to support you long after the sale.

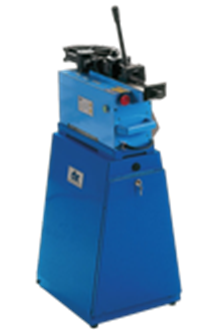

UNI-42 BENDER 3/4" & UNI-60 BENDER 1-1/2"
• Digitally Stores 9 programs with up to 9 bends each
• Single Speed Bending
• Electric Powered Rotary Drive, 220V, Single Phase Only
Maximum Bend Angle..................................................180°
Maximum Bend Radius.................................................6.5"
Speed........................................................................Single
UNI-42 BENDER 3/4"
Maximum Pipe Size......................................................3/4"
Maximum Tube O.D..........................................1.5" x .080"
Installed Power........................................................0.75HP
Approximate Weight..................................................78 lbs
Options
• Tube & Pipe Tooling and Kits
• Plane of Bend Positioners
• Positioning Table
UNI-60 BENDER 1-1/2"
Maximum Pipe Size..................................................1-1/2"
Maximum Tube O.D......................................1.75" x .083"
Installed Power........................................................1.5HP
Approximate Weight...............................................132 lbs
Options
• Tube & Pipe Tooling and Kits
• Plane of Bend Positioners
• Mandrel Kit for Low Volumne Mandrel Bending
• Tight Radius Accessories
• Plane of Bend Positioners
• Mandrel Table
