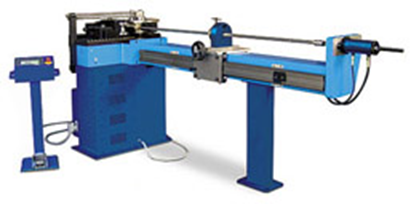

Carell Mandrel Rotary Tube & Pipe Bender UNI-90 Bender 2 1/2"

• Digitally Stores 50 programs with up to 9 bends each
• Hydraulic Clamps, Programmable
• Hydraulic Mandrel Extraction, Programmable
• Dual Speed Bending, Electric Powered Rotary Drive
Maximum Pipe Size....................................................2 1/2"
Maximum Tube O.D...........................................3.5” x .120"
Maximum Bend Angle...................................................180°
Maximum Bend Radius...................................................14"
Speed...........................................................................Dual
Installed Power...........................................................6.5HP
Approximate Weight..............................................2,150 lbs

Options
• Mandrel Bending Tooling & Accessories
• Mandrel Bed Lengths 5’, 8’, 11’, 15’, & 18
